JKD Series Intelligent Hydraulic Full-Angle Tunnel Core Drilling Rig

نام تجاری:	JCDRILL
شماره مدل:	سری JKD
مقدار تولیدی:	1 مجموعه
قیمت:	قابل مذاکره
شرایط پرداخت:	L/C ، T/T ، D/A ، D/P ، Western Union
توانایی عرضه:	20 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

پکن ، چین

گواهی:

قطر نگه دارید:

150-1200 متر

اندازه سوراخ:

AQ، BQ، NQ، HQ، PQ

وزن خالص:

2100-2750 کیلوگرم

قدرت امتیازی:

45-90 کیلووات

Max. حداکثر Rotation Speed سرعت دوران:

1000 دور در دقیقه

قابلیت ارائه:

20 ست در ماه

برجسته کردن:

intelligent hydraulic tunnel drill rig,full-angle core drilling rig,underground tunnel drill rig with warranty

full-angle core drilling rig

underground tunnel drill rig with warranty

توضیحات محصول

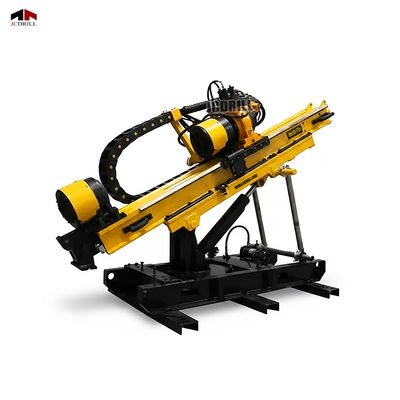

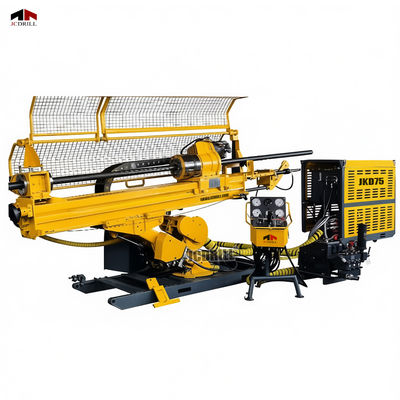

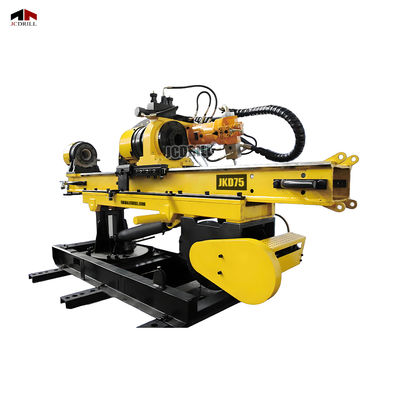

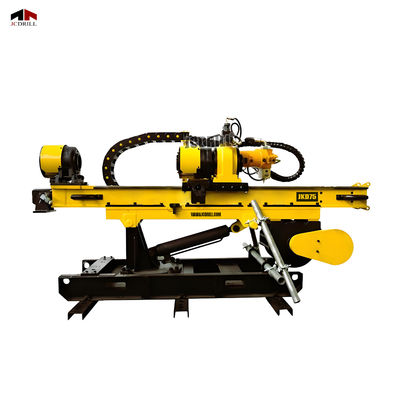

JKD Series Intelligent Hydraulic Full-Angle Tunnel Core Drilling Rig

Product Description

The JKD series tunnel core drilling rig has the characteristics of comprehensive drilling construction in all fields, all directions, and all angles, and is suitable for various purposes such as surface drilling, tunnel drilling, tunnel construction, and advanced prediction.

The JKD series drilling rig adopts internationally advanced intelligent control technology, which can achieve multiple functional extensions such as energy efficiency and safety control, automation management, etc. According to different needs, electric or diesel power units can be selected (single group or conversion, multi group). Hydraulic automatic positioning system, quickly and accurately adjusting drilling posture, easily achieving 360 degree drilling. Optimized design, clever structure, compact layout, maximum adaptability to narrow working spaces, convenient for construction. Advanced production technology, excellent manufacturing, and outstanding performance.

The power head adopts the classic design, with a through-hole chuck and rotating unit as a whole structure, fully ensuring the functionality and reliability of the drilling rig. Gear transmission and variable speed mechanism, with continuously adjustable speed. The power head is equipped with an independent lubrication system to ensure sufficient lubrication and improve the service life of components.

Technical Parameters

Technical parameter	JKD45	JKD55	JKD75	JKD90
Hole Dia.	D \| H \| U	D \| H \| U	D \| H \| U	D \| H \| U
95(HQ)		350m \| 300m \| 200m	450m \| 400m \| 200m	600m \| 500m \| 200m
75(NQ)	400m \| 300m \| 150m	500m \| 400m \| 200m	700m \| 500m \| 300m	1000m \| 600m \| 300m
59(BQ)	450m \| 350m \| 200m	700m \| 550m \| 350m	900m \| 650m \| 400m	1200m \| 800m \| 400m
46(AQ)	500m \| 400m \| 300m	-- \| -- \| --	-- \| -- \| --	-- \| -- \| --
Power System
Rated power	45kW	55kW	75kW	90kW
Maximum flow of main pump	100L/min	100L/min	140L/min	140L/min
Maximum pressure of main pump	20MPa	45MPa	25MPa	30MPa
Rotary head
Max. Rotation speed	1000rpm	1000rpm	1000rpm	1000rpm
Maximum torque	660Nm	700Nm	1000Nm	1300Nm
Mast
Feed length	1600mm	1600mm	1600mm	1600mm
Push Down capacity	65KN	65KN	65KN	65KN
Pull back capacity	65KN	90KN	120KN	120KN
Feed Speed	0.5m/s	0.5m/s	0.5m/s	0.5m/s
Hydraulic clamp
Through hole	97mm	97mm	97mm	97mm
Axial clamping force	90KN	90KN	90KN	110KN
Rope winch
Rope capacity (m)	25	25	25	25
Wire rope diameter	φ6mm	φ6mm	φ6mm	φ6mm
Work pressure difference	10MPa	10MPa	10MPa	15MPa
Brake opening pressure	2.5-2.8MPa	2.5-2.8MPa	2.5-2.8MPa	2.5-2.8MPa
Maximum flow	80L/min	80L/min	80L/min	140L/min
Motor model	R2K-80	R2K-80	R2K-80	HMT315
Weight
Overall weight	2100KG	2300KG	2370KG	2750KG

Product Features

Control System

Intelligent hydraulic control system, component action to achieve logic control. The pilot hydraulic system, with accurate and flexible equipment control, is easy and free, comfortable and safe. Load sensitive variable hydraulic system, high energy efficiency coefficient, balanced and stable power distribution. Customized hydraulic components of global first-line brands have excellent performance and high reliability.

Power System

The electric motor is equipped with a dual variable displacement pump, a 230L oil tank, as well as suction and return oil filters. The hydraulic oil is cooled using a watercooled cooler, and an electric fuel pump is also equipped. With an IP66 protection level, it is suitable for harsh working environments with high temperatures, high humidity, and high corrosion. Danfoss main pump and auxiliary pump, variable hydraulic system, load-sensing control.

Mast Seat

Made of high-strength alloy steel or high-quality carbon steel welded together, the structure is mechanically optimized, with stable support and strong load-bearing capacity. The mating surface between the bracket and the slide is precision machined, with precise guidance to ensure the quality of drilling. Wide adaptability, flexible adaptation to complex working conditions. Safe and reliable, adaptable to harsh environments. Easy installation and maintenance, High work efficiency.

Rotary Head

Through hole chuck design, compact structure, customized production in Canada. HQ through hole capability, mechanical clamping, hydraulic control opening, stable, flexible and accurate action. The unique external connection mode is adopted to connect with the power head, which is convenient for quick disassembly and maintenance.

Pipe Clamp

The normally closed drill rod gripper adopts mold spring clamping and hydraulic opening. When the hydraulic system loses pressure, it can quickly and automatically close, clamping the drill rod safely and reliably. High automation level, outstanding operational efficiency, capable of linking with the main control system of the drill to achieve automatic control of clamping and releasing actions. Precise guidance to ensure drilling quality.
